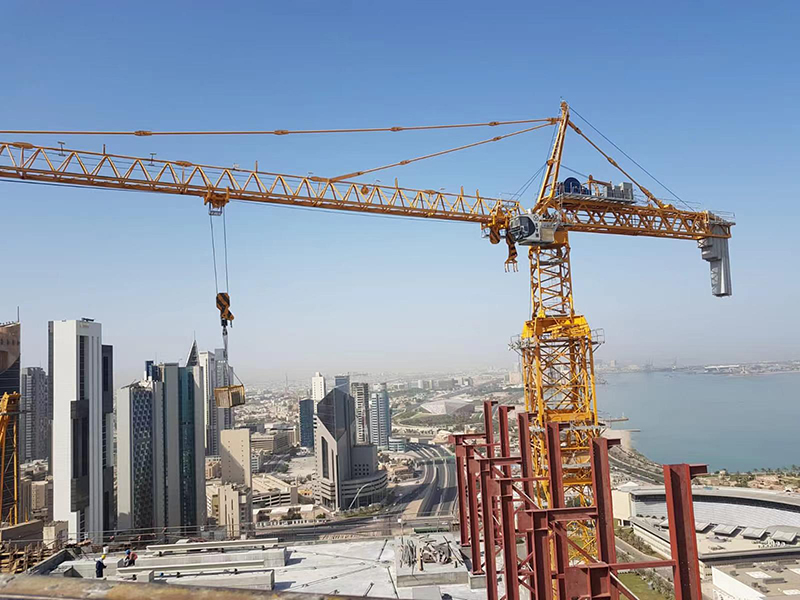

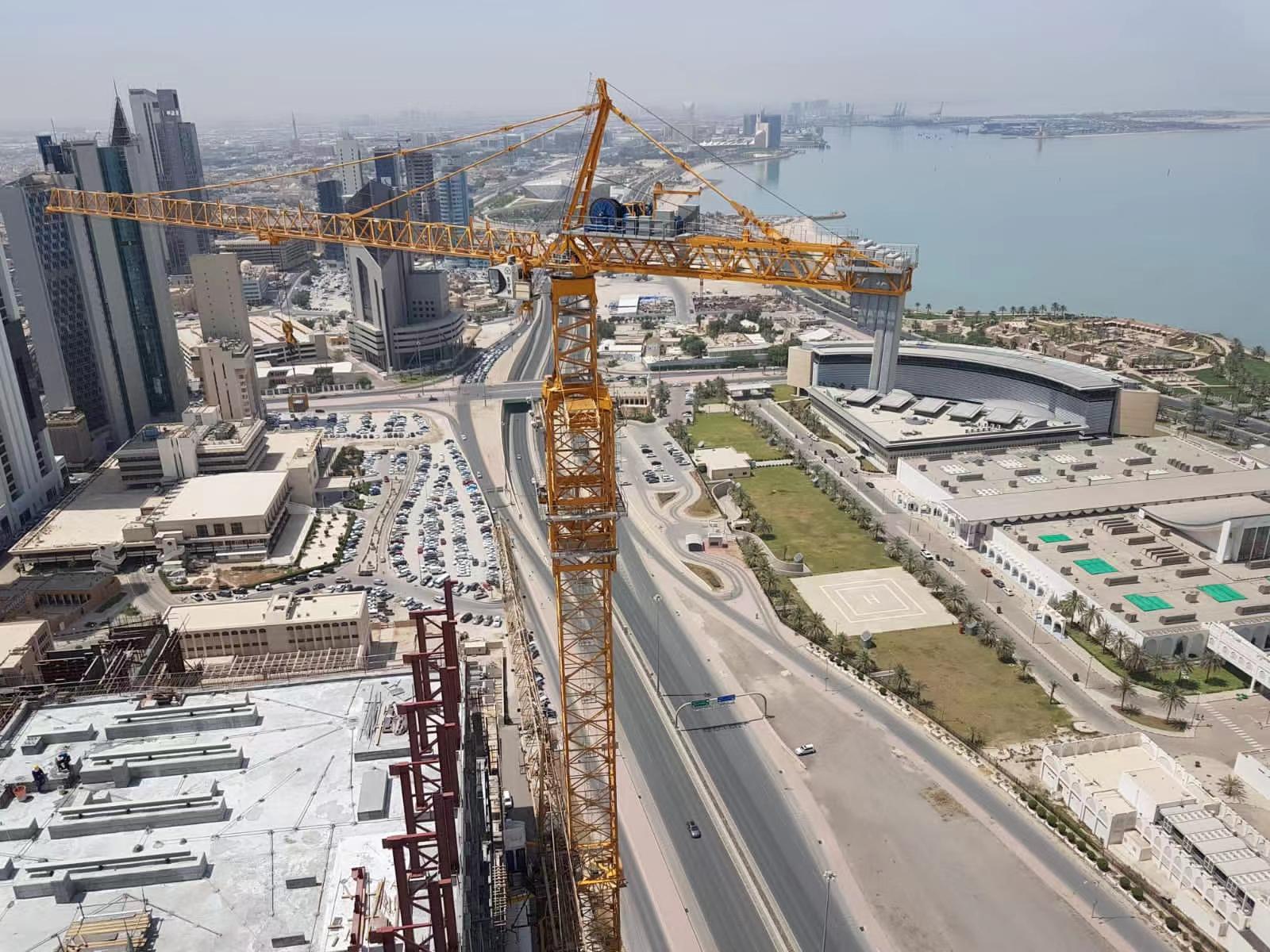

SYM tower crane S1200 M64 topkit tower crane.
Free standing hgieht 96m topkit tower crane.
Jib 80m topkit tower crane.
Tip load 13.1 ton topkit tower crane.
64 ton capacity.
4.0x4.0x5.7m tower crane mast section.
Hoisting motor 160kw x 1
Slewing motor 11kw x 4/155NM x 4.
Trolley motor 22kw x 1.
Mechanisms | Diagram | Technical features |
Anti-collision system |
| Collision protection between towercranes, and the tower crane bodyboom or hook collides with other mobile equipment.Area protection, setting the workingrange of tower cranes. |
Intelligent manufactory |  |
Limit switch,Load limiter, Torque limiter prevent overload for different radius. Load moment indicator. |
Remote monitoring |
| Automatically track the operation of the hook and monitor the lifting status in real time. Monitor the rope arrangement of the drum. Other positions that need to be monitored. |
Tower crane include limits, insurance and other safety devices. Limit safety device: lifting moment limiter, lifting weight limiter, lifting height limiter, amplitude limiter, travel limiter, etc. Safety device: hook insurance, wire rope drum insurance, ladder guardrail and so on. Other safety devices: rail clamp, anemometer, wire rope anti-stripping groove, tower black box, etc.
Yes, we have 100% test before delivery.
CE, TUV, ISO9001
Generally 7-15 days after advance payment.
